Release 3.3.1
We're pleased to present Enterprise Lens 3.3.1, a quality of life update focused on quality of life updates, refinements to existing functionality, and bug fixes.
1. Ability to Duplicate Illustrations
You are now able to duplicate any illustration by clicking the new Duplicate button, located next to Edit and Delete in each illustration when you open a Projects directory, as shown below.

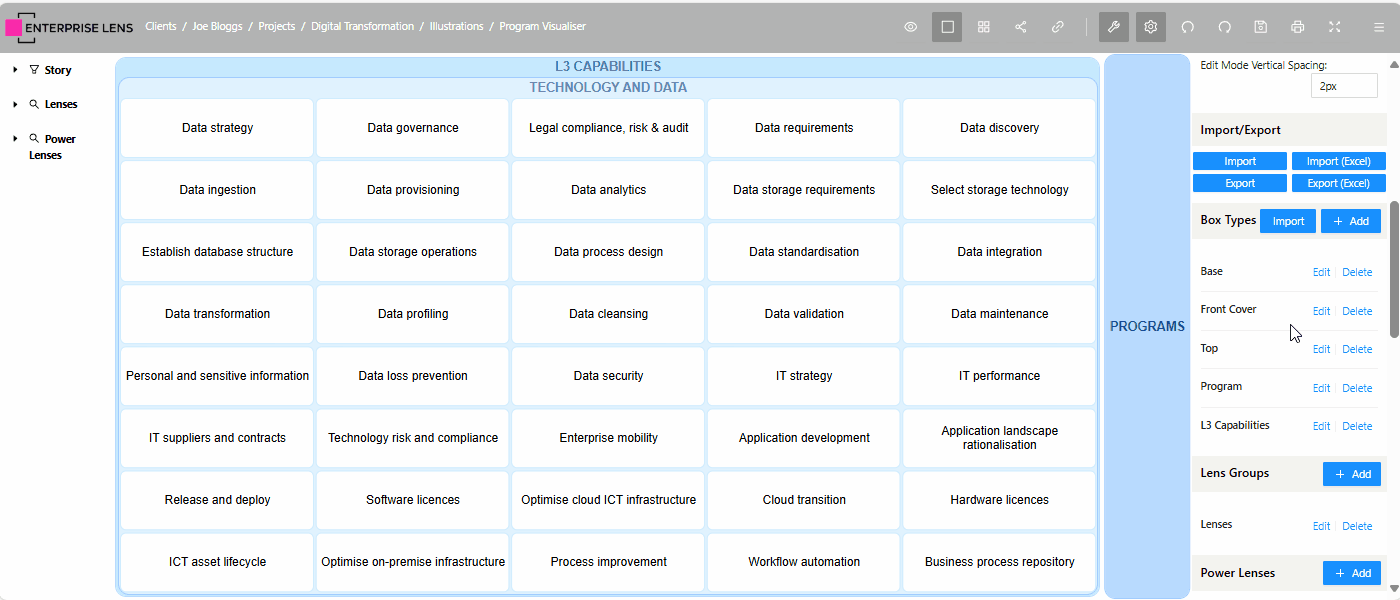

Below is an example GIF illustrating how this works, each duplicated illustration has a number that corresponds with the amount of times it was duplicated.
2. Create Automatic Filter now supports Multi-Value Associations
When using Create Automatic Filter, previously if a box joined to multiple other values, it used show as a list in the Create Automatic Filters menu, these values are now deduplicated automatically.
- i.e. Project 1 joined to Program 2, 3, and 5
- In the Create Automatic Filter, under Values to Create it will show an entry called "Program 2, Program 3, Program 5" instead of recognising them as individual programs.
- With this release, all values are automatically deduplicated, allowing you to make associations that join to multiple other values (boxes) easily. as pictured below.

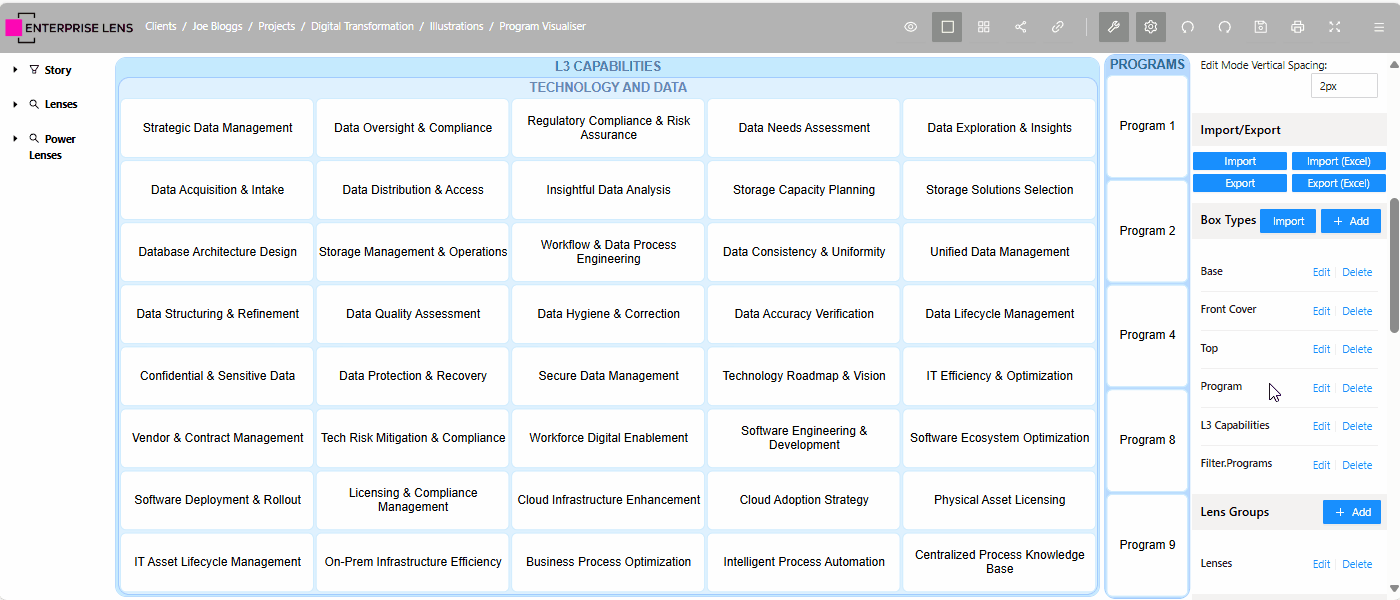

Below is the full example of this, where a user is making a filter of Programs.
-
During the creation of the filter, it listed all individual Programs (as shown above), despite several of the L3 boxes being joined to multiple Programs.
-

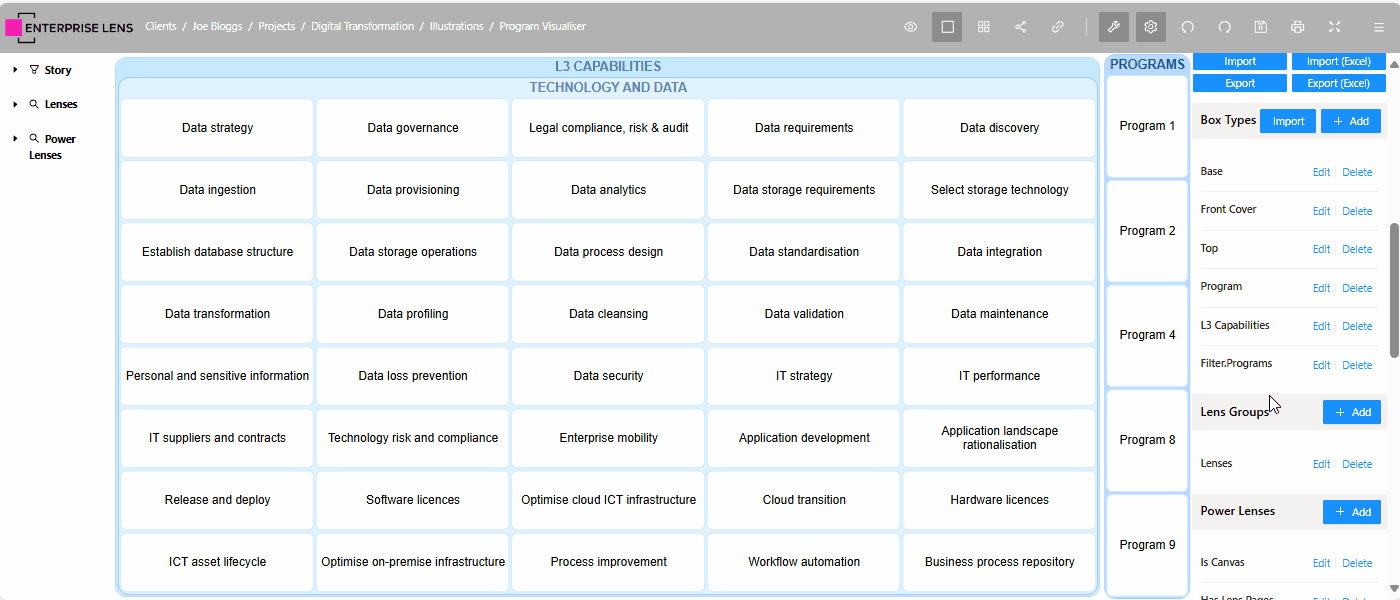

These boxes were then connected to the Programs, with example box Enterprise Mobility connected to multiple Programs, namely Programs 1, 4 and 8.
3. Importing Canvases Retains Illustration Layout
When you import a Canvas, any hidden boxes remain hidden, ensuring only the imported canvas is updated.
4. Refined Edit Box Type Menu

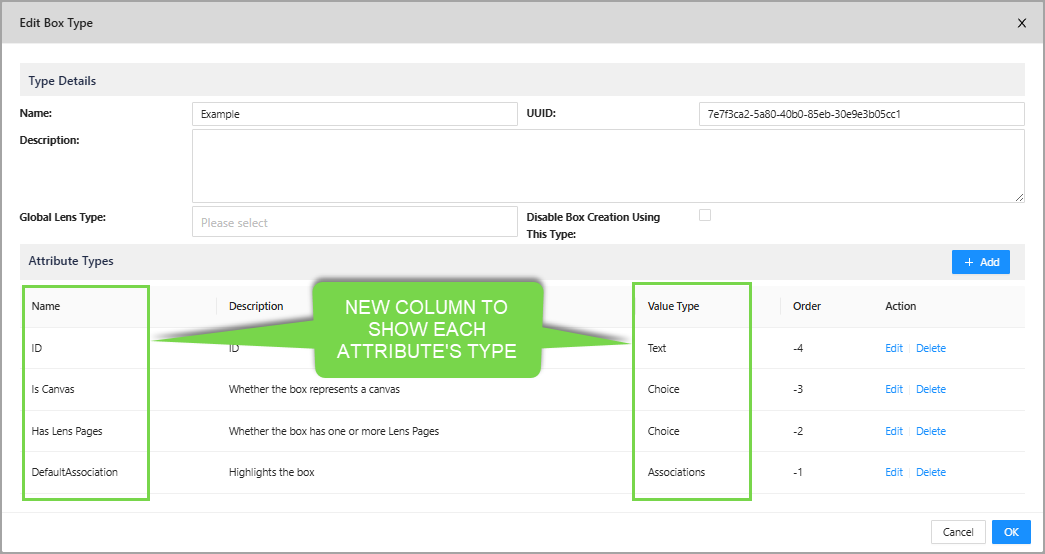

The Edit Box Type menu has been tweaked to include a new column showing the type for each attribute, along with the retired import button removed (formerly located next to the + Add button).
5. New Render Function Presets
6. Box Type Descriptions are now Hidden
We have now hidden box descriptions in the right hand menu, allowing for a tidier experience. You are still able to open, enter and view descriptions by editing a box type.
Jira Codes
Bug
EL-527 When you select "Select" from "Import Types" nothing happens
EL-718 Import Function does not work in the Edit Box Type Form
EL-597 Boxes "Keep Hidden Boxes In Illustration" does not persist when you Import and Export OR SAVE an Illustration
EL-741 Exporting an Illustration from its Front Cover, does not preserve the box visibility layout when reimported
EL-749 Re-importing a Canvas makes other hidden boxes visible again
New Feature
EL-688 Duplicate an Illustration
Improvement
EL-746 Use commas as a delimiter in Values to Create for Create Automatic Filter
EL-666 Make the Box Type description only available when you Edit the Box Type
EL-751 Include Value Type for Attributes in Edit Box Type Menu
EL-600 When you select "Association" from "Attribute Type Details" Form - default setting to "Set Box Styles Property"
EL-752 Remove default render function
EL-753 Default values for Render Functions
